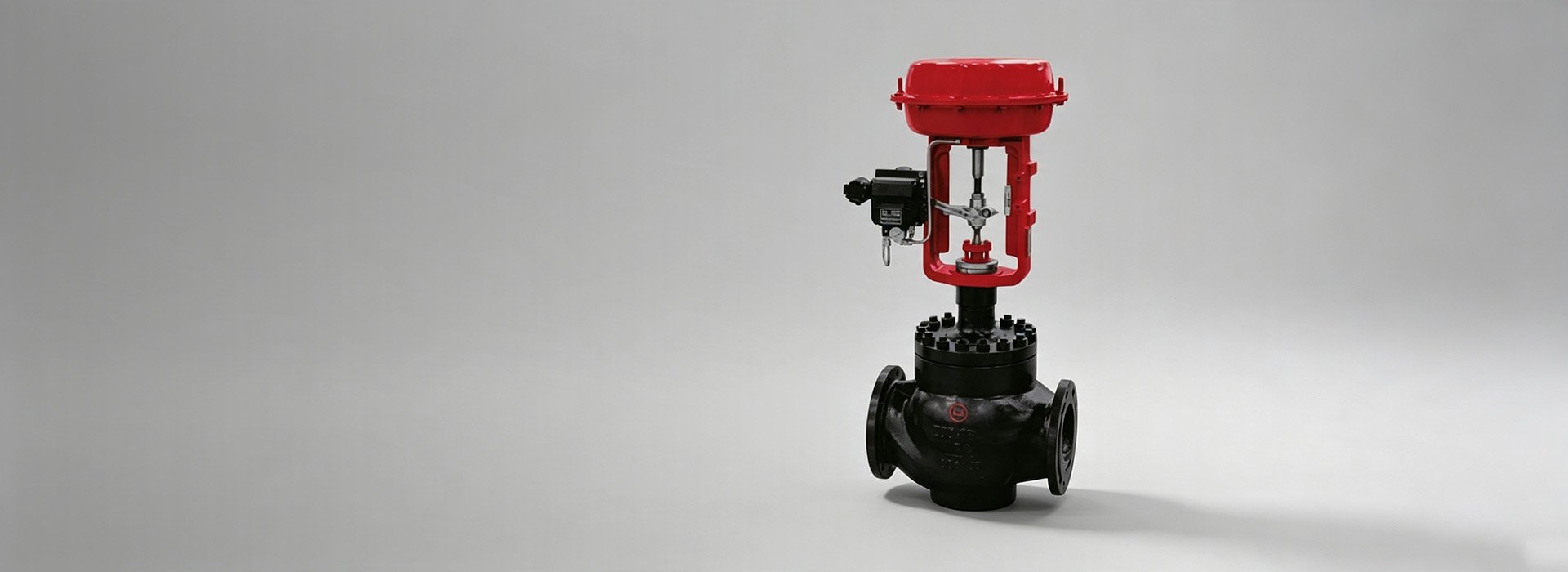

Electric Control Valve Manufacturer in China
The electric control valve is composed of a straight-through single seat valve with low flow resistance or a straight-through valve with low flow resistance combined with a straight-acting electric actuator. There is a servo amplifier in the electric actuator, no need to use another servo amplifier, with input control signal 4-20mA DC or 1-5VDC and single-phase power supply can control the operation to realize the regulation of pressure, flow, temperature, level and other parameters.

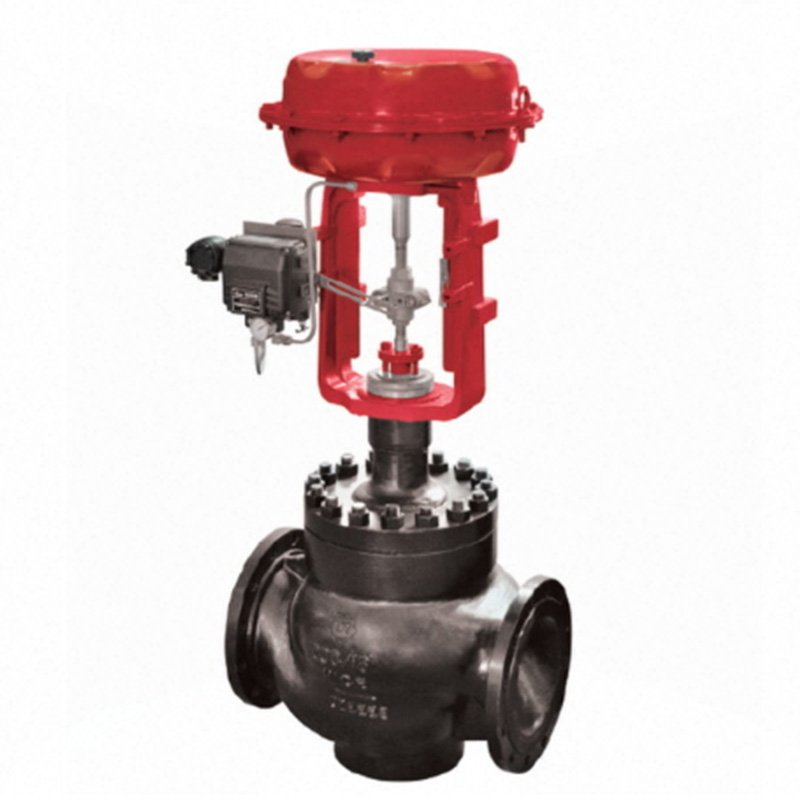

Various Types of Our Electric Control Valve
The pressure drop loss is small, the flow rate is large, the flow rate accuracy is high, and the adjustable range is large.The guiding area is large and the anti-seismic performance is good. The valve seat can be quickly replaced, which is convenient for maintenance.

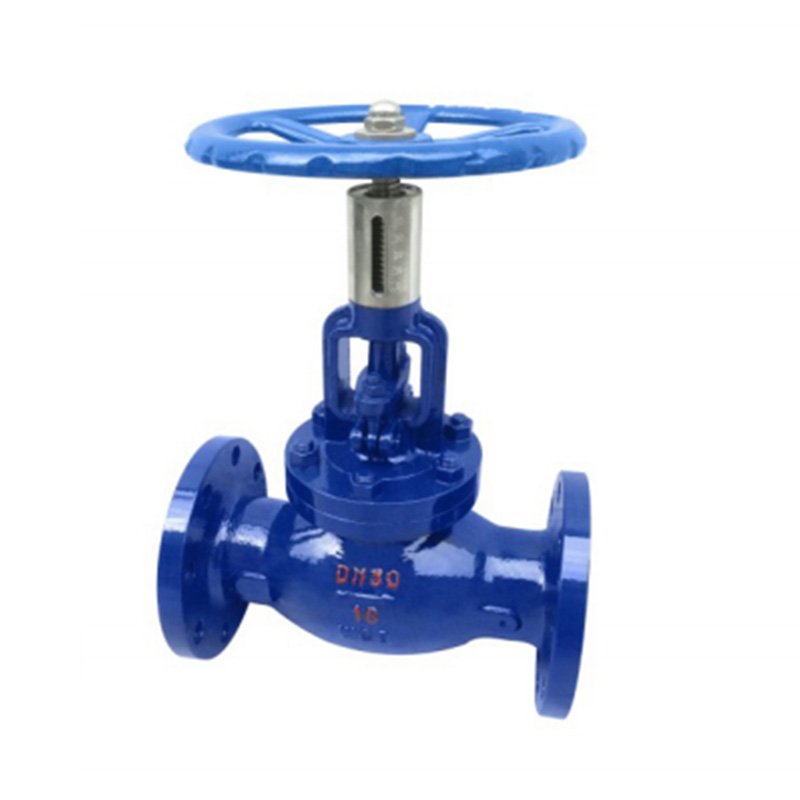

The manual control valve in Dalian can be closed by turning the hand wheel counterclockwise. At this time, the valve stem drives the valve seat down until the two tapered sealing surfaces come into contact to completely close the pipeline. The manual regulating valve produced by our factory is an energy-saving product suitable for centralized heating and regional heating

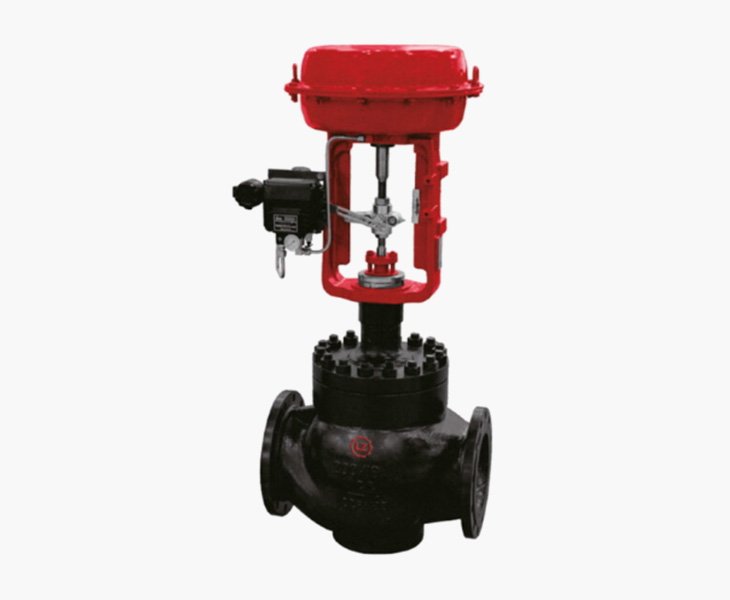

Electric Control Valve to Suit Your Project
Our reliable electric control valve manufacturer is in China. A complete enterprise standardization management system and adopts the world’s leading precision casting technology. In addition to the modern electronic detection system, the company will also apply advanced management concepts to the factory management mode, and through the British Standards Association-ISO international quality assurance system, perfectly match the on-site 6S standardized management, from the selection of materials to the factors of finished products.

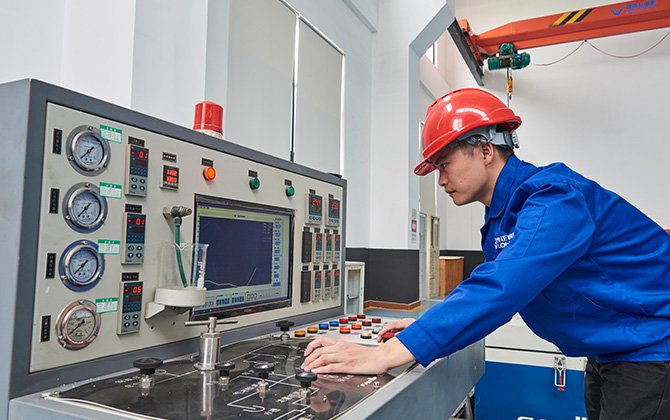

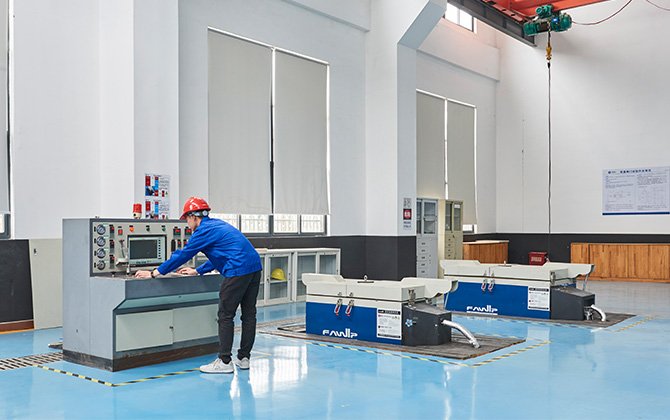

Your Reliable Electric Control Valve Manufacturer in China
We are a reliable electric control valve manufacturer in China, with a perfect standardized management system and adopting the world’s top precision casting technology. The company also has an advanced electronic detection system, which integrates modern management concepts into the factory management mode and perfectly matches the on-site 6S standardized management.

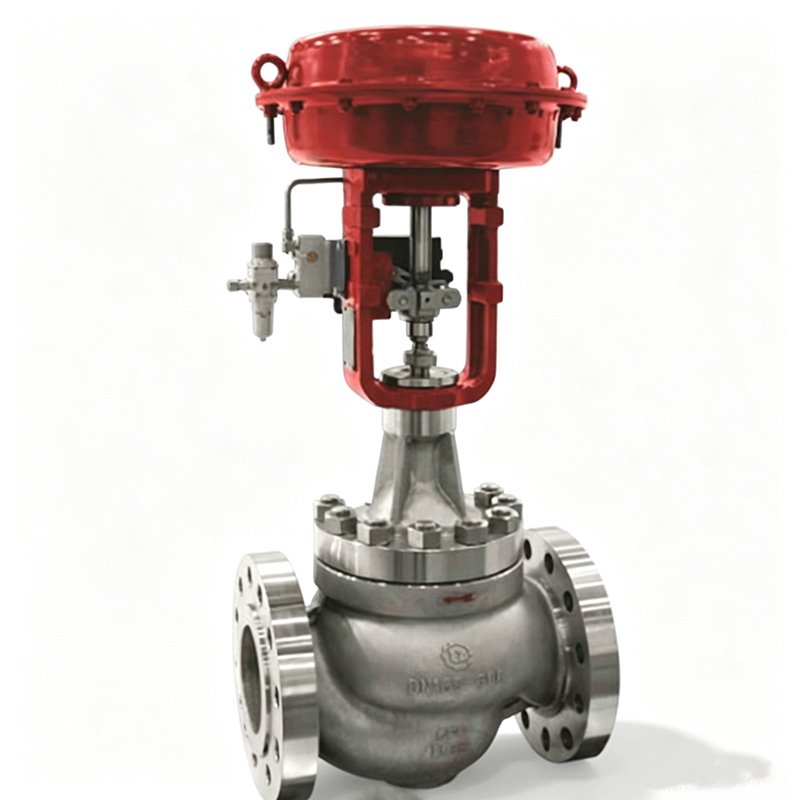

Electric Control Valve Application Scenarios
The electric control valve has the characteristics of small volume, light weight, simple wiring, and large flow rate.
The single-phase power supply of the electric control valve can control the operation to realize the pressure, flow rate, temperature, and liquid.
Adjustment of position and other parameters.
Flow characteristics of electric control valve: equal percentage characteristic, straight characteristic, quick open characteristic.
More About Our Electric Control Valve
- Data Sheet
- Certifications
| DN | L | H | H1 | ΦA | Kg: PN16 | Kg: PN40/PN64 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PN16 | PN40 | PN64 | ordinary | high temperature | PN16 | PN40 | PN64 | ||||
| 25 | 184 | 197 | 210 | 503 | 653 | 57 | 57 | 70 | 260 | 15 | 19 |
| 40 | 222 | 235 | 251 | 648 | 813 | 75 | 75 | 85 | 260 | 26 | 35 |
| 50 | 254 | 267 | 286 | 650 | 820 | 82 | 82 | 90 | 260 | 30 | 40 |
| 65 | 276 | 292 | 311 | 752 | 932 | 92 | 92 | 102 | 290 | 34 | 53 |
| 80 | 298 | 317 | 337 | 764 | 949 | 100 | 100 | 107 | 290 | 42 | 65 |
| 100 | 352 | 368 | 394 | 782 | 992 | 110 | 117 | 125 | 360 | 52 | 86 |
| 150 | 451 | 473 | 508 | 1077 | 1337 | 142 | 150 | 172 | 360 | 152 | 206 |
| 200 | 550 | 610 | 1097 | 1357 | 170 | 187 | 207 | 360 | 220 | 280 | |
| 250 | 673 | 720 | 1240 | 1560 | 202 | 225 | 235 | 360 | 423 | 470 | |
| 300 | 734 | 860 | 1271 | 1591 | 230 | 257 | 265 | 360 | 663 | 735 | |
Testimonial
Your company’s electric control valve has completely changed our chemical production process! Precise flow control and stable pressure regulation greatly improve production efficiency.
EngineerAmericaWe have purchased your Electric control valve for the production line, and the product has passed strict certification. After installation, it has completely solved the problem of fluid fluctuation. The operation interface is intuitive and easy to understand, and the maintenance cost is low.
Purchasing and Supply Chain ManagerSpainThe price is reasonable, the quality is reliable, and the delivery is on time. This is our second purchase; the product performance is stable, and the after-sales service is also very good.
Purchasing ManagerAmerica
This electric control valve should be regularly checked to see if there is rust, welding slag, dirt, or dust in the pipeline, and the support frame should be regularly checked in cases where the self-weight is large and there is vibration. The gas source and power source must not have any faults. The sealing gasket at the connection between the valve body and the upper valve cover should be replaced in time when it has been used for a long time. When replacing it, you only need to remove the upper valve cover to place the new sealing gasket.
If there is leakage in the packing gland, the sealing packing should be replaced in time. When replacing, the valve stem should be removed, the pressure plate and packing pressure cover should be removed, and the new packing can be installed. Regular maintenance. Protective covers should be installed on connection flanges when it is parked for an extended period of time, and all connections must have plastic plugs. When parking, ensure the valve as a whole.
Vertical or horizontal position. Do not support the valve in sensitive areas, such as valve positioners, joints, and connections.
- Product model and name
- Nominal diameter DN mm
- Nominal pressure
- Flow characteristics
- Valve body material
- Rated flow coefficient
- Medium type and temperature range
- Pressure difference before and after the valve
- Power supply voltage and control signal
- Other special requirements.
Transportation and Storage of Electric Control Valve
- Before storage and transportation, check whether all the signs are complete and clear, whether the packing box is neat and firm without damage or cracks, and finally check the reliability and safety of the packing box.
- When transported, it should be loaded and unloaded gently, and it is strictly forbidden to throw, slide, and hit. All kinds of signs should not be lost, damp, and machinery should not be damaged.
- The indoor air containing no harmful impurities that corrode the valve and stored at an air temperature of 5-40° C and a relative humidity of less than 90% does not contain corrosive impurities.
- Place it according to the marking on the surface of the packaging box and do not put it upside down.
- The rust-prone parts of the product are coated with anti-rust grease, wrapped with anti-rust paper, and the anti-rust period is not less than one year.
- Petroleum asphalt or plastic film should be used as a rainproof measure in the packing box.
Installation and Use of Electric Control Valve
Electric control valve installation that does not meet the requirements will cause huge waste, on the contrary, proper installation can ensure normal operation and extend the service life. Reduce maintenance workload and achieve good system control performance.
Safety: Safety of personnel and equipment during installation.
Control performance: The pressure loss of the piping system should be consistent with the pressure loss considered when calculating the size of the regulating valve to ensure the required flow characteristics. Import and export should try to ensure sufficient straight pipe sections. Installation position: There should be sufficient space for the operator to manually operate, including bypass operation, and to ensure the possibility of on-site disassembly and maintenance of the regulating valve and accessories. The electric control valve group usually consists of bypass valves and regulating valves installed in the process piping to meet the continuous operation requirements of the equipment. Use a shut-off valve to isolate the regulating valve during maintenance. Adjust with bypass valve.
On-Site Installation
Specifically, pay attention to the following points:
Installation personnel should first recognize that the electric control valve is a precision instrument and equipment, and should not be bumped or dropped to avoid damage.
The valve is best installed vertically on the pipe. A support frame should be added in cases where the valve has a large self-weight and vibration.
The valve body should be avoided from being subjected to excessive stress due to severe misalignment between the front and rear piping or flanges.
Before the first start-up and after the shutdown inspection, the piping system should be flushed and then the regulating valve should be installed. Or install a transitional filter mouth before the valve.
The electric control valve must be installed in accordance with the arrow indicating the direction of flow on the valve body.
