Y-FILTER Manufacturer in China
Y-filter is an indispensable filtration device in piping systems for conveying media. It is easy to use, convenient, and fast. Different filter screens with varying degrees of filtration precision can be provided according to your requirements, and the filter screens are easy to clean and replace. The filter screens are also convenient to clean and replace.
various types of Our Y-FILTER

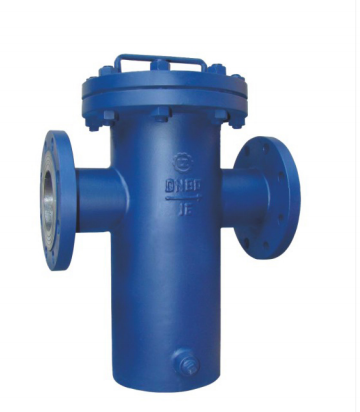

The structure of a basket filter mainly includes connecting pipes, cylindrical bodies, filter baskets, flanges, flange covers, and fasteners. It is also known as a basket filter and a straight-through filter. It is typically directly connected to the piping system of machinery and equipment, intercepting impurities in the fluid to ensure the normal operation of the machinery and equipment.

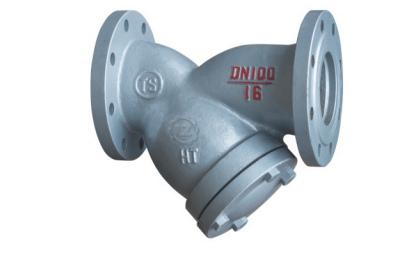

Cast steel Y-type filters sit inline and take their name from the body. Sand, scale and welding slag get trapped in the Y, so they never reach the pumps, control valves, instruments and heat exchangers downstream.
Stainless steel holds up where carbon steel won’t: water, chemicals, brine, food-grade media. Our Y-filter and strainers don’t shed rust into the line, and you can strip them down, clean them and sterilize them as often as your process demands.

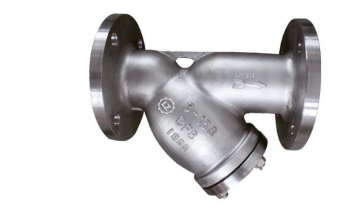

Y-filter – low resistance, long service life
This filter, with its advanced structural design, offers advantages such as low resistance and convenient sludge discharge. Its applicable media include water, oil, and gases. All internal components are made of stainless steel, ensuring durability and robustness; The filter mesh supports on-demand customization, while maintaining the standard Y-shaped design overall.
Your Trusted Y-filter Manufacturer in China

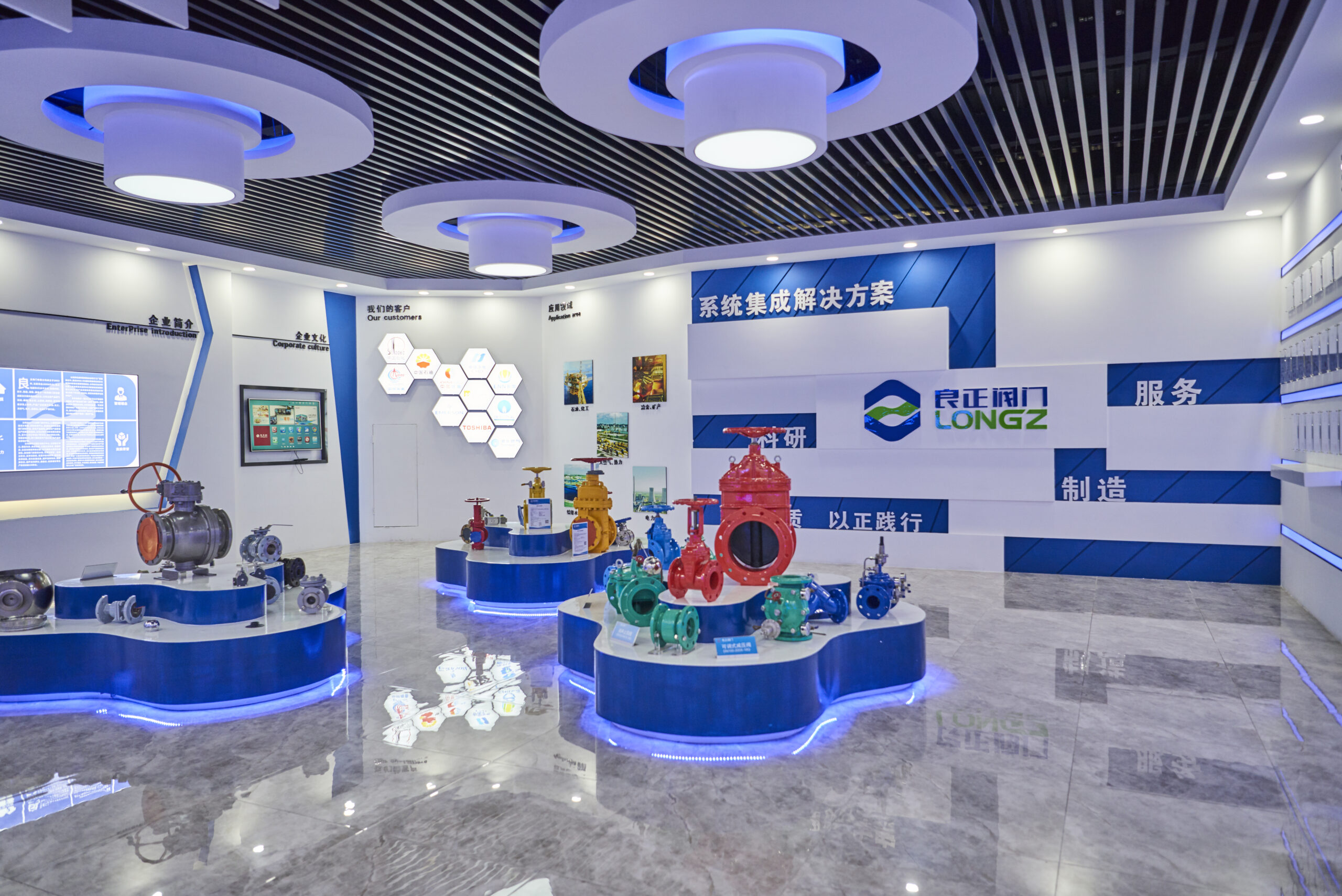

To ensure superior product quality, Longz has established a large-scale bedroom processing center and is equipped with over 400 production and testing devices, including large bedroom machining centers and spectral analyzers.
Application scenarios Y-FILTE
When a fluid enters the filter equipped with a filter screen of a specific specification, its impurities are blocked, while the clean medium fluid is discharged from the filter outlet. When cleaning is required, simply remove the detachable filter cartridge, process it, and then reload it.

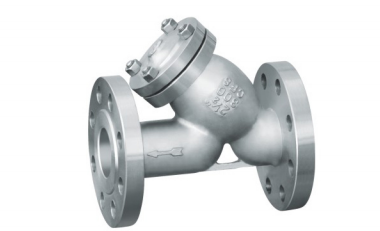

The Y-filter is an indispensable component of piping systems transporting natural gas media. Its function is to filter mechanical impurities from the medium, thereby protecting fittings on equipment and pipelines from wear and blockage, ensuring normal operation of the equipment.
The Y- filter is a small device that removes a small amount of solid particles from the medium in pipelines, protecting the normal operation of equipment.
- certificate
- Dimensions of the Y-Filter
| Nominal diameter | D | D1 | D2 | L | B | f | n-d | M | D3 | H | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||||
| 50 | Φ165 | Φ125 | Φ102 | 230 | 19 | 3 | 4-Φ19 | 4-Φ19 | 1/2 | 62 | 100 | ||||
| 65 | Φ185 | Φ145 | Φ122 | 290 | 19 | 3 | 4-Φ19 | 4-Φ19 | 1/2 | 77 | 110 | ||||
| 80 | Φ200 | Φ160 | Φ138 | 310 | 19 | 3 | 8-Φ19 | 8-Φ19 | 1/2 | 92 | 130 | ||||
| 100 | Φ220 | Φ180 | Φ158 | 350 | 19 | 3 | 8-Φ19 | 8-Φ19 | 1/2 | 112 | 150 | ||||
| 125 | Φ250 | Φ210 | Φ188 | 400 | 19 | 3 | 8-Φ19 | 8-Φ19 | 1/2 | 141 | 180 | ||||
| 150 | Φ285 | Φ240 | Φ212 | 480 | 19 | 3 | 8-Φ23 | 8-Φ23 | 1/2 | 166 | 226 | ||||
| 200 | Φ340 | Φ295 | Φ268 | 600 | 20 | 3 | 8-Φ23 | 12-Φ23 | 1 | 216 | 279 | ||||
| 250 | Φ405 | Φ350 | Φ355 | Φ320 | 730 | 22 | 3 | 12-Φ23 | 12-Φ27 | 1 | 270 | 346 | |||
| 300 | Φ460 | Φ400 | Φ410 | Φ370 | Φ378 | 850 | 24.5 | 4 | 12-Φ23 | 12-Φ27 | 1 | 320 | 406 | ||
| 350 | Φ520 | Φ460 | Φ470 | Φ430 | Φ438 | 980 | 27 | 4 | 12-Φ23 | 12-Φ27 | 1 | 370 | 610 | ||
| 400 | Φ580 | Φ515 | Φ525 | Φ480 | Φ487 | 1100 | 28 | 4 | 12-Φ23 | 12-Φ30 | 1 | 420 | 691 | ||
| 500 | Φ715 | Φ620 | Φ650 | Φ580 | Φ610 | 1250 | 32 | 4 | 20-Φ28 | 20-Φ34 | 1 | 520 | 850 | ||
When I initially chose this Y-type filter, it was precisely because of the brand’s expertise in industrial fluid filtration equipment. In actual use, it indeed did not disappoint. Previously, when using filters from other brands, I had to clean the filter mesh every three to five months, and there were occasional issues with sealing leaks, which delayed project progress significantly. This product not only requires simple daily maintenance, but its stainless steel material is also fully compatible with the acidic and alkaline working conditions of XX in our facility. I sincerely recommend it to fellow professionals with purchasing needs.
Procurement ManagerSaudi Gas CompanyThis filter also supports the adoption of American standard design specifications. Whether in terms of the product’s own quality level or its performance in actual operating conditions, it fully meets all our requirements. From the initial communication and customization of parameters, to shipment follow-up, and then to post-delivery installation guidance, Longz’s service has been comprehensive throughout the entire process. It fully meets all compliance requirements for our overseas projects, alleviating many of our concerns. In the future, if there are new projects requiring the purchase of filtration equipment, we will still prioritize this series of products.
EngineerAmerican Gas Company
The intensity (shell strength) test specifications for our Y-filters are 3.0 MPa (430 Lbf/in²) and 7.7 MPa (1110 Lbf/in²), depending on the pressure class and rating of the specific model.
Standard / Medium Pressure Models: 3.0 MPa (430 Lbf/in²)
High Pressure Models: 7.7 MPa (1110 Lbf/in²)
If you could share your required pressure rating (e.g., PN16, Class 150, Class 300) or working medium, I can send you the exact technical datasheet and the corresponding third-party test report.
The filter mesh material of this Y-filter is made of SS316 or SS316L, among other materials.
Our product is suitable for media such as gas, water, oil, or nitric acid and acetic acid types.
Y-filter Removable filter mesh, easy to maintain
The Y-type filter is shaped like the letter Y. One end allows water or other fluids to pass through, while the other end settles sediment and impurities. It is typically installed on pressure-reducing valves, At the inlet end of pressure relief valves, fixed water level valves, or other equipment, its function is to remove impurities from the water, thereby protecting the normal operation of valves and equipment. The water to be treated enters the body through the inlet port, with impurities settling on the stainless steel filter screen, generating a pressure difference in the process. The Y-type filter is a small device that removes minor solid particles from liquids, thereby protecting equipment from malfunctioning. When the fluid enters the filter cartridge equipped with a filter screen of a specific specification, its impurities are blocked, while the clean filtrate is discharged from the outlet of the filter. When cleaning is required, simply remove the detachable filter cartridge, process it, and then reload it. Therefore, maintenance is extremely convenient.
