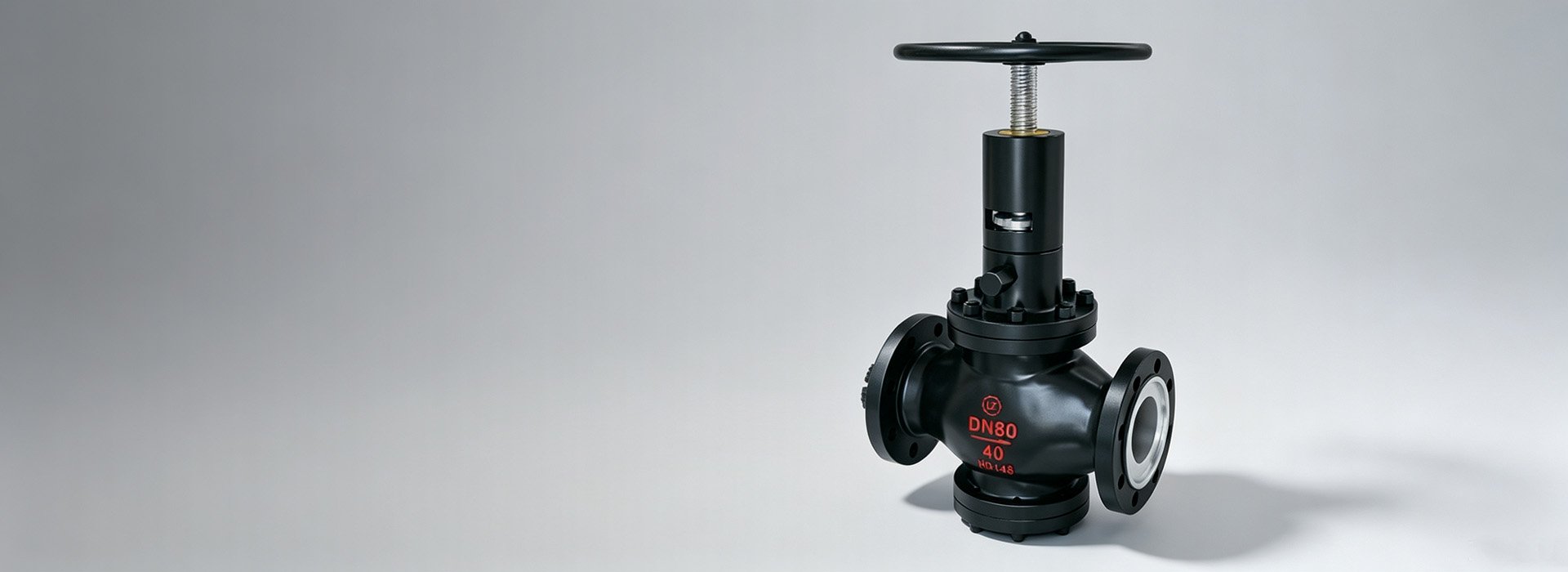

Sleeve Type Drain Valve Manufacturer in China
Sleeve-type drain valve: specific sealing, zero leakage, wear-resistant, anti-clogging, self-cleaning of the sealing surface, automatic slag discharge, throttling pressure reduction, meets the excellent performance of particulate impurity discharge, especially can adapt to the discharge requirements of low-quality conditions, can be widely used in petroleum, natural gas, chemical, metallurgical, and other industries pipeline collection.
Liangzheng has a complete enterprise standardization management system and adopts the world’s top precision casting technology and modern electronic detection system. As a professional manufacturer, it has more than 20 years of experience in designing and manufacturing valves, of which the domestic market share of the gas ball valve series reaches 20%.
Various Types of Our Sleeve Type Drain Valve

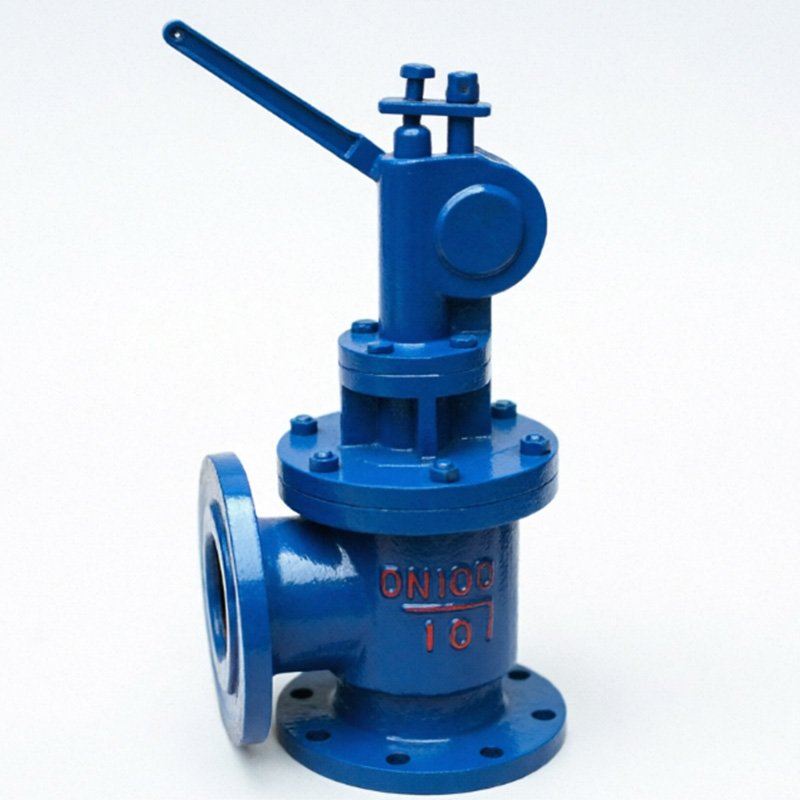

Manual sludge discharge valve: the service life is more than two years, the opening speed is fast, the valve plate can be fully opened in 5 seconds; The valve plate and valve body adopt a soft sealing structure, and the sealing performance is good after closing, without leakage.

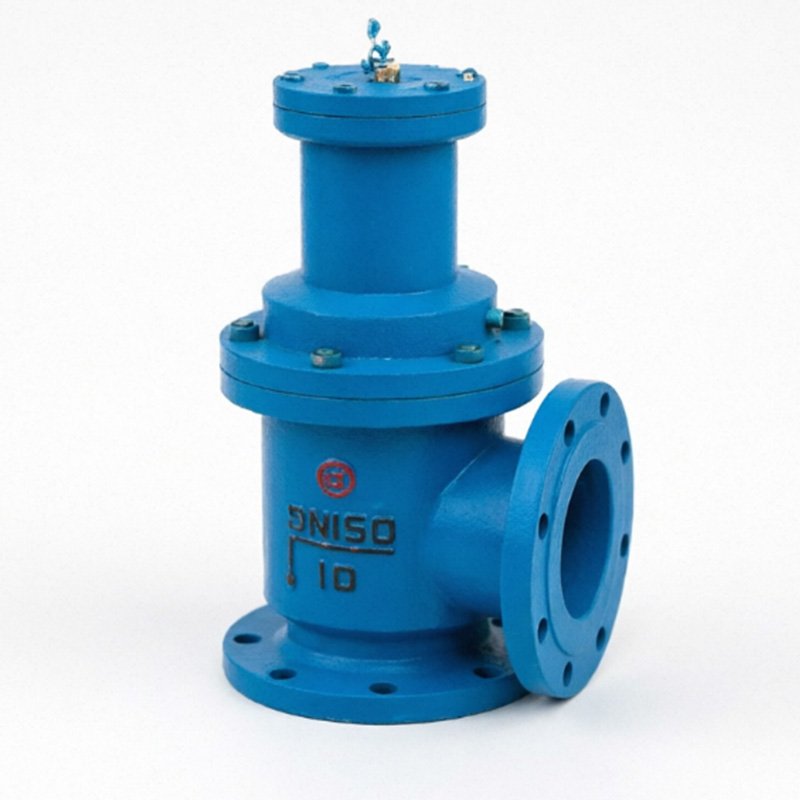

The valve seat adopts a flat bottom structure, and the sealing surface is sprayed with ceramic, which has excellent wear resistance and corrosion resistance, can prevent the accumulation of impurities, and has a long service life.

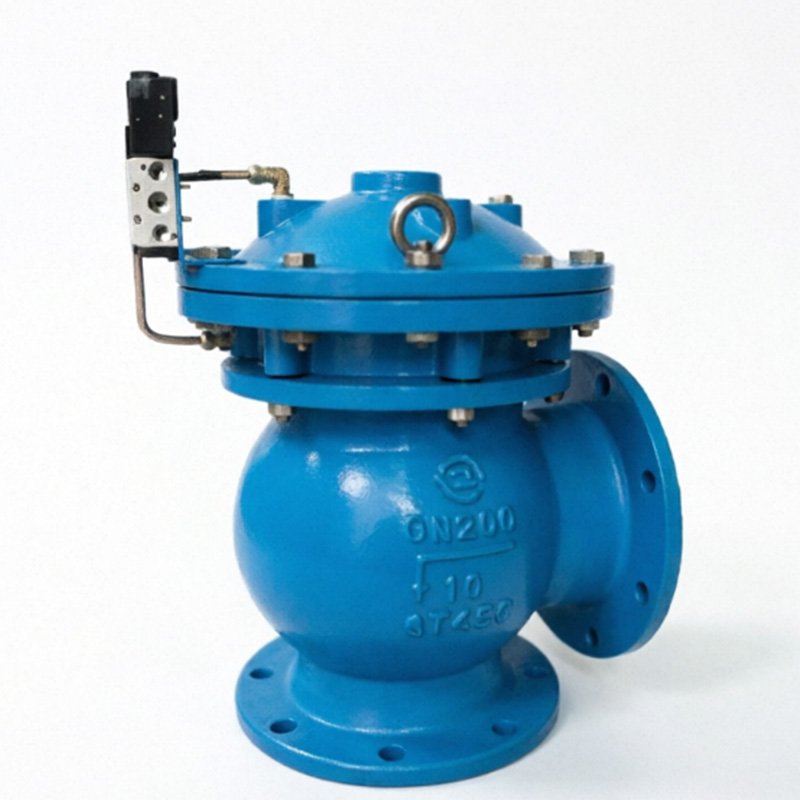

This is an angular structure, and the partition divides the inner cavity into two parts: the control cavity and the flow channel. The control cavity is divided into two control cavities by the diaphragm.

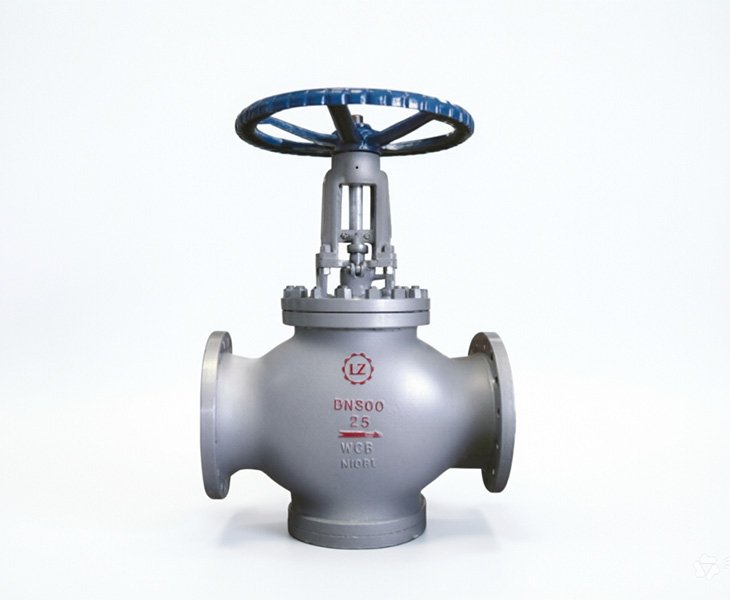

Customize Sleeve Type Drain Valve to Suit Your Project
In harsh industrial environments, we can provide you with material customization services according to the media you pass through, and can be customized according to your industry.
At the same time, we have the German South TUV fireproof certification, ISO9001 international quality system certification, domestic and foreign authoritative detection quality qualified products, more than 50 invention patents and technological innovation patents, and other certificates.

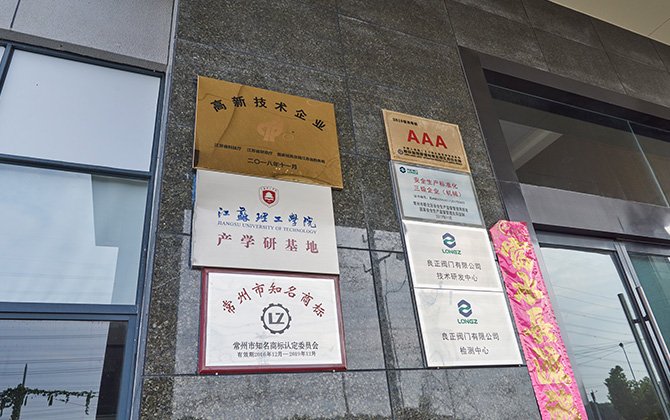

Your Reliable Sleeve Type Drain Valve Manufacturer in China
Liang Zheng combines advanced management concepts with factory management models. Through the perfect combination of UKAS-IS0 international quality assurance system and on-site 6S standardized management, the advanced MES intelligent manufacturing management system (LMES) is used to manage the whole process from raw material selection to finished products. The sleeve-type drain valve’s process and quality traceability have realized the specialization, automation, standardization, and procedural organization of production.
Sleeve Type Drain Valve Application Scenarios

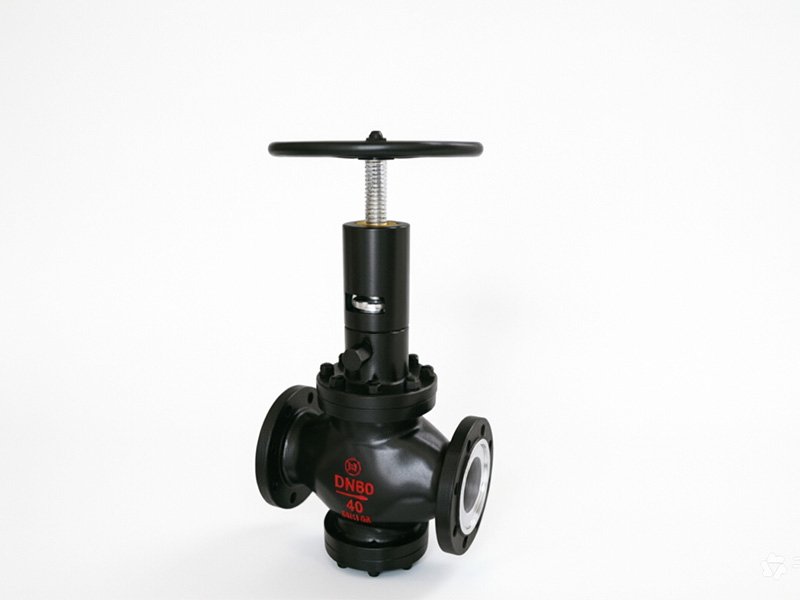

Sleeve-type drain valve. The valve seat and valve seat adopt a soft and hard double-quality sealing pair; the throttling part is completely separated from the sealing surface, which reduces the erosion of the sealing surface by the airflow and meets the “zero leakage” of high-pressure and liquid media.

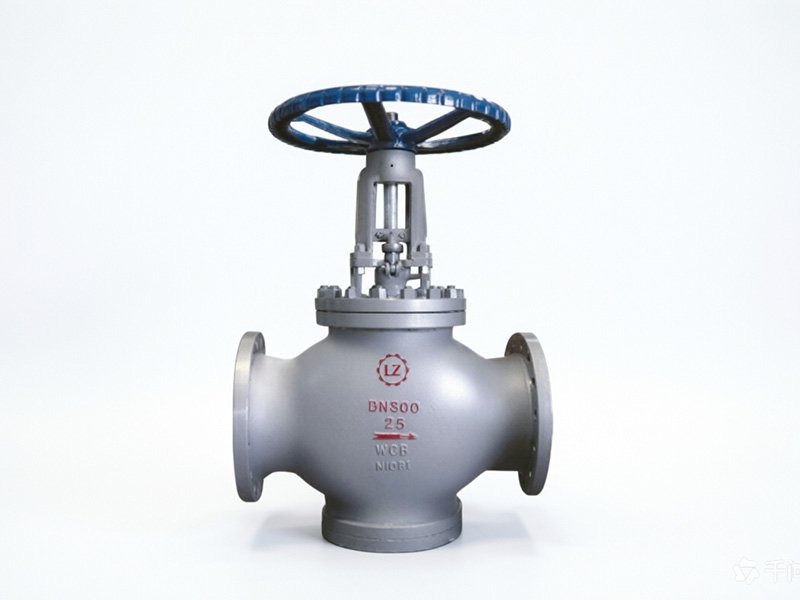

Sleeve-type drain valve. When the valve seat and the valve disc have a dual-hard and soft sealing structure that leaves a specific travel distance between them, that is, when there is a certain space gap between the valve seat and the disc, the valve will open slowly.

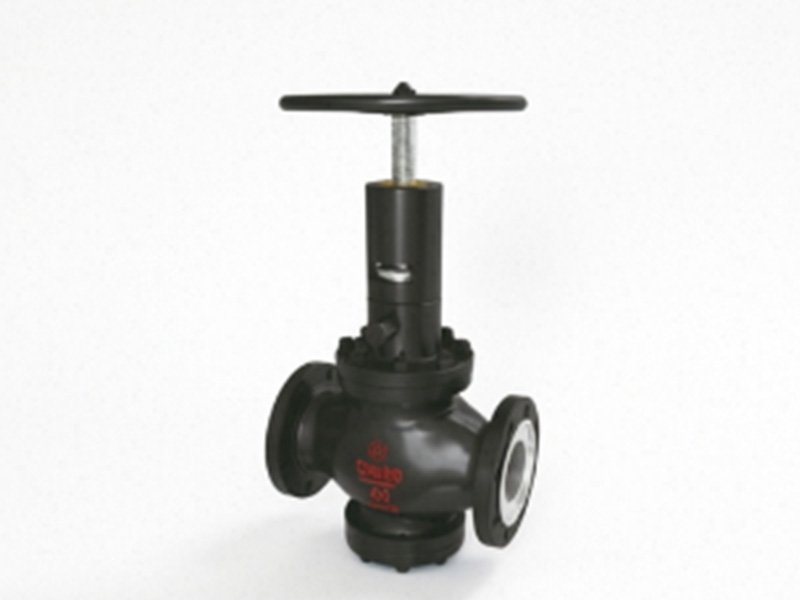

Sleeve-type drain valve. The specific sealing is zero leakage, and the soft sealing surface embedded in the inner cavity of the valve seat uses the vortex flow generated by the change of the direction of the inlet medium flow channel and the outlet direction of the medium flow channel to realize self-cleaning, so that the soft sealing surface does not adhere to debris.
More About Our Sleeve Type Drain Valve
- Technical Parameter Table
- Certifications
| PN (MPa) | DN (mm) | Size (mm) | PN (MPa) | DN (mm) | Size (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | D0 | L | H | H1 | D0 | |||||
| 1.6 | 25 | 216 | 243 | 86 | 180 | 6.3 | 25 | 216 | 243 | 86 | 180 | |
| 40 | 230 | 265 | 108 | 250 | 40 | 230 | 265 | 108 | 250 | |||
| 50 | 230 | 346 | 115 | 250 | 50 | 230 | 346 | 115 | 250 | |||
| 80 | 310 | 409 | 146 | 300 | 80 | 310 | 409 | 146 | 300 | |||
| 100 | 350 | 433 | 163 | 300 | 100 | 350 | 433 | 163 | 300 | |||
| 150 | 480 | 521 | 202 | 350 | 150 | 480 | 521 | 202 | 350 | |||
| 200 | 600 | 594 | 292 | 350 | 200 | 600 | 594 | 292 | 350 | |||
| 250 | 730 | 621 | 355 | 400 | 250 | 730 | 621 | 355 | 400 | |||
| 2.5 | 25 | 216 | 243 | 86 | 180 | 10 | 25 | 230 | 245 | 78 | 200 | |
| 40 | 230 | 265 | 108 | 250 | 40 | 260 | 265 | 106 | 250 | |||
| 50 | 230 | 346 | 115 | 250 | 50 | 300 | 287 | 110 | 300 | |||
| 80 | 310 | 409 | 146 | 300 | 80 | 380 | 409 | 152 | 350 | |||
| 100 | 350 | 433 | 163 | 300 | 100 | 430 | 433 | 169 | 350 | |||
| 150 | 480 | 521 | 202 | 350 | 150 | 559 | 531 | 225 | 400 | |||
| 200 | 600 | 594 | 292 | 350 | 200 | 650 | 709 | 321 | 500 | |||
| 250 | 730 | 621 | 355 | 400 | 250 | 775/787 | 817 | 399 | 500 | |||
| 4 | 25 | 216 | 243 | 86 | 180 | 16 | 25 | 230 | 215 | 78 | 200 | |
| 40 | 230 | 265 | 108 | 250 | 40 | 260 | 265 | 105 | 250 | |||
| 50 | 230 | 346 | 115 | 250 | 50 | 300 | 237 | 110 | 300 | |||
| 80 | 310 | 409 | 146 | 300 | 80 | 390 | 414 | 155 | 350 | |||
| 100 | 350 | 433 | 163 | 300 | 100 | 450 | 440 | 175 | 350 | |||
| 150 | 480 | 521 | 202 | 350 | ||||||||
| 200 | 600 | 594 | 292 | 350 | ||||||||
| 250 | 730 | 621 | 355 | 400 | ||||||||
Testimonial
The sealing performance of this sleeve-type drain valve is excellent, and it performs stably under frequent operation. It’s also very easy to install.
EngineerAmericaThe installation of this sleeve-type drain valve is very convenient, the size is standard, the operation is light, and the performance is stable.
ProcurementSaudi ArabiaThe surface treatment and material for this sleeve-type drain valve fully meet our standards, and its operation is very simple. We have been using it for more than half a month, and it is still strong.
Purchasing ManagerSpain
Low-temperature type: -101 ℃ ~ 29 ℃ (the nominal pressure and nominal diameter of the high-temperature and low-temperature type are determined according to the actual working conditions).
This sleeve type drain valve can effectively protect the sealing surface and prolong the service life of the valve by avoiding the direct erosion of high-pressure difference media when the valve is opened. During the closing process of the valve, the self-cleaning of the hard and soft double-phase sealing surface avoids the adhesion of impurities on the hard and soft double-phase sealing surface, prevents the sealing surface from being scratched after closing, ensures the reliability of the sealing, and meets the requirements of sewage discharge in harsh working conditions.
Working Principle of Sleeve-Type Drain Valve
1. Closed State
The PTFE end face of the sleeve type drain valve is embedded in the internal cavity of the valve seat and is pressed against the valve seat end face to form a soft seal; The inner conical surface of the valve seat hard sealing pair presses against the conical surface of the nozzle to form another layer of hard sealing. At the same time as the soft sealing elastic deformation, the double-quality sealing of soft and hard ensures “zero leakage” of the gas medium.
2. State of Throttling and Discharge
sleeve type drain valve After the valve seat of the soft and hard double-quality sealing pair leaves a certain travel distance from the valve seat, that is, when there is a certain space distance between the valve seat and the valve seat, the valve slowly opens, and the medium and impurities in the pipeline pass through the throttling shaft, sleeve window, and valve sleeve window after throttling, and are discharged from the shaft sleeve drain window. The soft sealing surface is embedded in the internal cavity of the valve seat, and the vortex generated by the change of the direction of the inlet medium flow channel and the outlet medium flow channel realizes self-cleaning, so that the soft sealing surface will not adhere to debris.
3.Emissions Are Turned Off
After the medium in the pipe is discharged, close the valve of the sleeve-type drain valve. After the throttling shaft and the valve seat nozzle are matched at a certain distance, only impurities less than the matching clearance can flow into the valve seat sealing surface. At this time, the valve seat channel begins to enter the slope of the sleeve step, further increasing the flow resistance coefficient; the medium flow rate increases, and the slope of the sleeve uses the radial force generated by the medium to change the direction of the medium flow, thus realizing the blowing of the valve seat surface. When the sealing of the valve seat is close to the valve seat, the particles and impurities passing through the gap will be blown away by the vortex force in the valve seat and the radial force of the medium in the valve seat, ensuring that the valve is completely blown away and the sealing performance is guaranteed after the valve is discharged.
