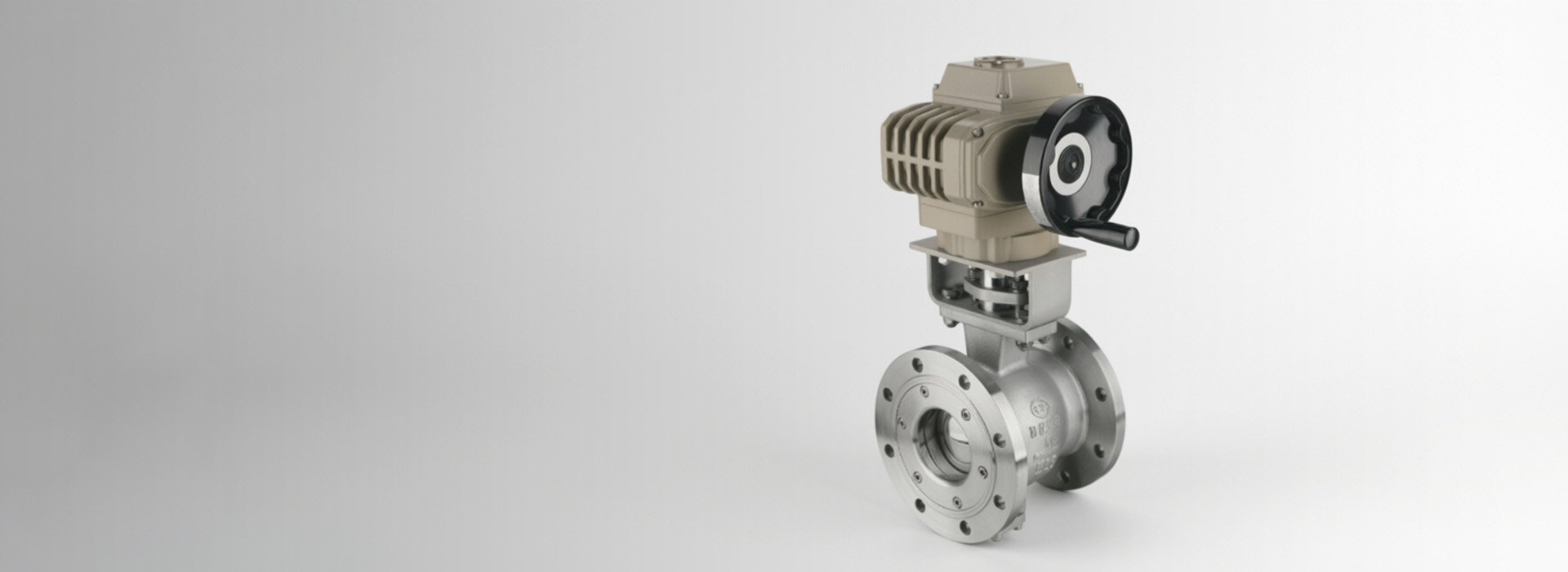

V-Ball Valve Manufacturer in China
The v-ball valve is equipped with the SX series actuator, which does not need to be equipped with a servo amplifier. The input (4~20mA DC or 1-5VDC) signal and single-phase power can control the operation and realize the control of pressure, flow rate, temperature, level, etc.
Adjustment of numbers.
The valve seat of the V-ball valve has a V-shaped cut, which produces a shear force when rotating relative to the hard-sealed valve, and can cut the fiber, preventing it from getting stuck. It has the characteristics of circulation capacity, high regulation accuracy, large adjustable ratio, good sealing, light weight, etc.
The company has always adhered to the principle of “first-class products and first-class service”, and has a strong professional after-sales service team. We maintain contact, communication, and transportation with our customers at all times to maximize the performance of our products. We have a 24-hour after-sales service hotline. Over the years, the company has focused on pipeline integration control as its goal, and quality brings benefits.
Various Types of Our V-Ball Valve

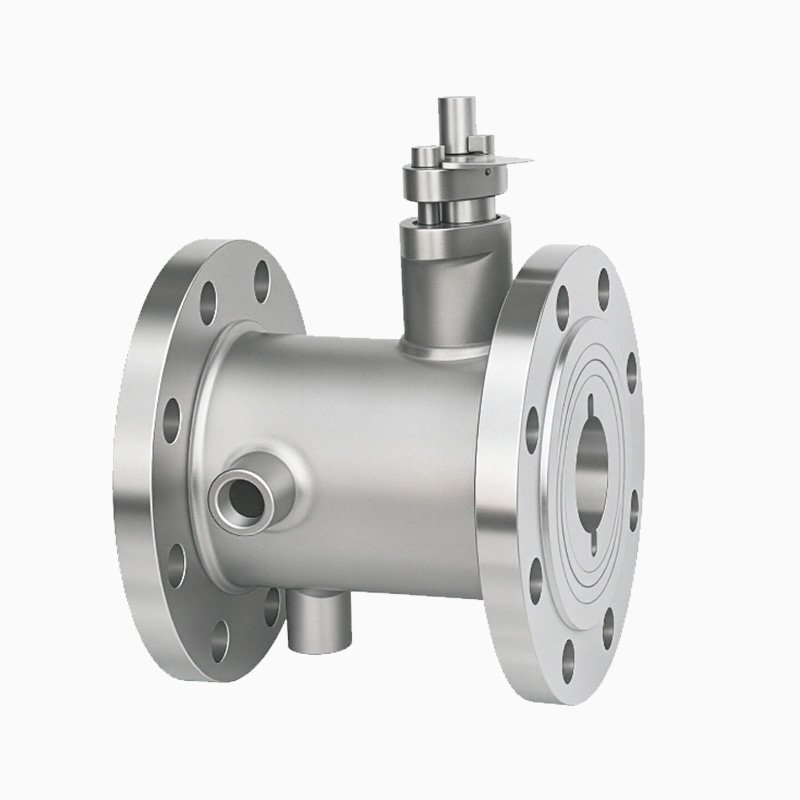

BQ41F type PN16, PN20, PN25, insulation jacket type ball valve has good insulation and refrigeration characteristics, and the diameter of the valve is consistent with the diameter of the pipe, and can also effectively reduce.

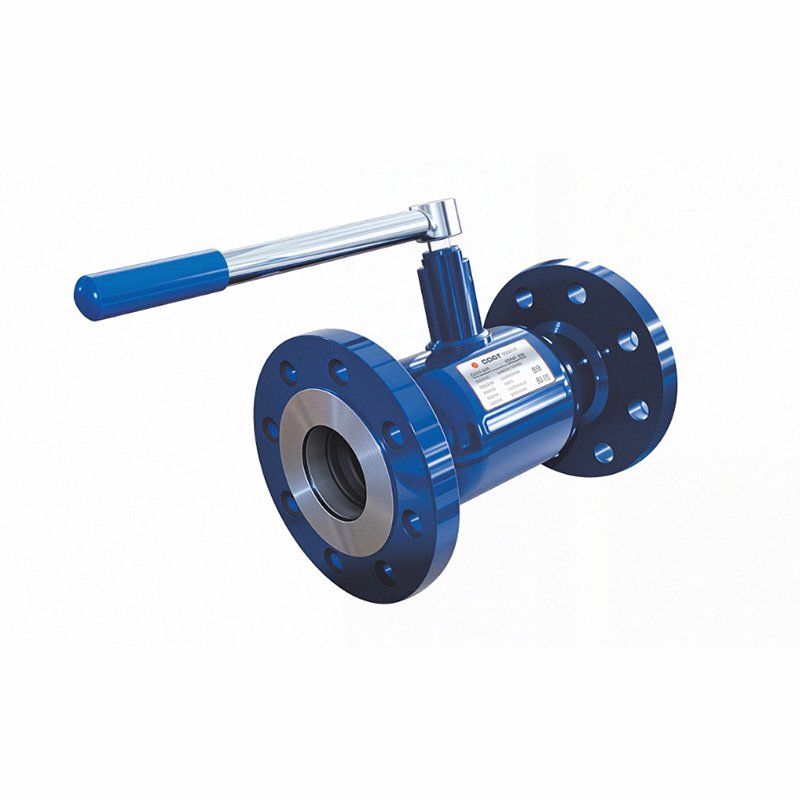

The ball valve for heating pipeline adopts a side mounting structure, which reduces the connecting bolts of the valve body under high-pressure and large-diameter conditions, enhances the reliability of the valve, and can overcome the self-weight of the system on the valve.

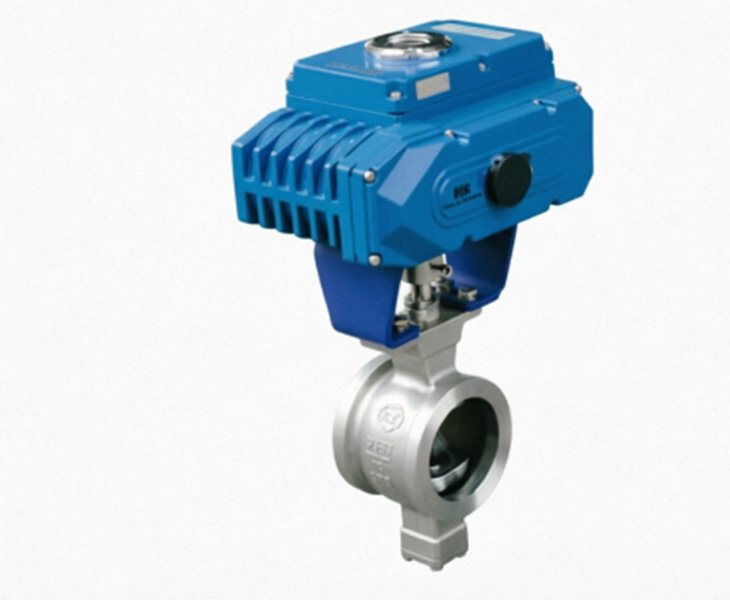

Customize V-Ball Valve to Suit Your Project
The V-ball valve can be customized according to the medium you pass through or the working scene you apply to realize the parameters of pressure, flow, temperature, liquid level, etc. When the valve is closed, the V-shaped gap produces a wedge-shaped shear action in front of the valve seat, and it has a self-cleaning function to prevent.

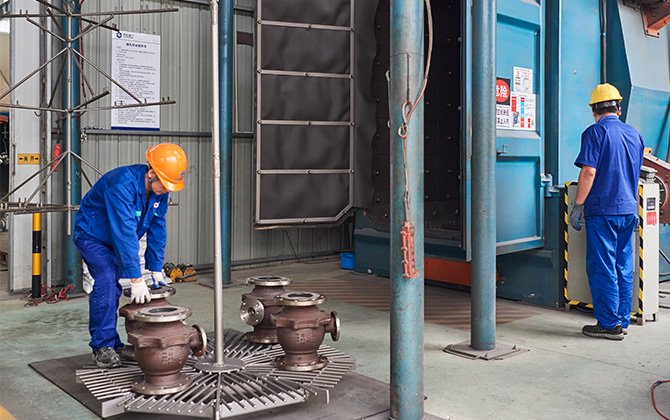

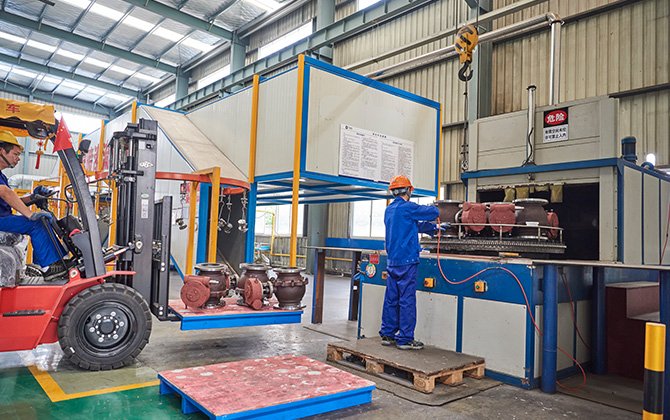

Your Reliable V-Ball Valve Manufacturer in China
A complete enterprise standardization management system is adopted, and it adopts the world’s top precision casting technology. As well as a modern electronic detection system, the company applies advanced management concepts to the factory management mode, which perfectly matches the on-site 6S standardized management through the UKAS-ISO international quality assurance system, and the product from material selection to finished product factor.
V-Ball Valve Application Scenarios
It has the characteristics of circulation capacity, high regulation accuracy, large adjustable ratio, good sealing, light weight, etc.
The V-ball valve has a V-shaped valve body, which can ensure the precision of control within the entire range of flow rate or high viscosity media, even in small flow rate or high viscosity media.
The v-ball valve has a V-shaped cut on the valve seat, which produces a shear force when rotating relative to the hard-sealed valve, and can cut the fiber to prevent jamming.
More About Our V-Ball Valve
- Technical Specification
- Certifications
| Nominal diameter | PN16 | ||||||
|---|---|---|---|---|---|---|---|
| A | D | H1 | H2 | H | F | F1 | |
| 15 | 62 | 64 | 74 | 75 | 390 | 161 | 40 |
| 20 | 62 | 64 | 74 | 75 | 390 | 161 | 40 |
| 25 | 62 | 64 | 74 | 75 | 390 | 161 | 40 |
| 32 | 62 | 78 | 80 | 75 | 400 | 188 | 40 |
| 40 | 62 | 82 | 85 | 75 | 405 | 188 | 40 |
| 50 | 75 | 100 | 87 | 95 | 430 | 188 | 40 |
| 65 | 90 | 120 | 105 | 115 | 460 | 188 | 40 |
| 80 | 100 | 131 | 115 | 125 | 520 | 268 | 40 |
| 100 | 115 | 158 | 125 | 125 | 530 | 268 | 40 |
| 125 | 130 | 180 | 140 | 155 | 570 | 268 | 40 |
| 150 | 160 | 216 | 153 | 165 | 600 | 268 | 40 |
| 200 | 200 | 268 | 200 | 195 | 680 | 268 | 40 |
| 250 | 250 | 325 | 225 | 225 | 730 | 268 | 40 |
Testimonial
Since installing this V-ball valve, our flow regulation accuracy has improved significantly, and this V-ball valve is lightweight, easy to maintain, and has almost never experienced lag or leakage problems.
EngineerAmericaThis V- ball valve has the characteristics of small size and large flow capacity. This seal is excellent, perfectly compatible with corrosive media, and the production line efficiency is directly doubled after installation.
ProcurementSaudi ArabiaThe v-shaped cut design in this v-shaped ball valve brings excellent shear action, the direct flow channel is smooth, and there has never been any blockage, the control accuracy is far beyond our expectations.
PurchaseSpain
The body material of our V-ball valve includes ZZG0Cr18 Ni12Mo2Ti, ZG1Cr18 Ni9Ti, and WCB.
This mainly depends on the applicable medium of your V-ball valve, such as water, steam, and oil products; the applicable temperature is -28 ~ 500 ℃, while acetic acid and nitric acid are -28 ~ 400 ℃.
Characteristics and Explanation of V-Ball Valve
The V-ball valve is matched with the SX series actuator, which does not need to be equipped with a servo amplifier. The input (4-20mA DC or 1-5V DC) signal and single-phase power can control the operation and realize the regulation of pressure, flow, temperature, level, and other parameters.
There is a V-shaped cut on the reading chip, and the relative rotation between the hard seal and the V-shaped cut produces a shear force, which can cut the fiber and prevent it from getting stuck. It has the characteristics of circulation capacity, high regulation accuracy, large adjustable ratio, good sealing, light weight, etc.
It is suitable for most occasions except for small-diameter, angular, and three-way connections, and is the best product to replace imported products.
It is especially suitable for regulating mud and fibrous media, as well as media containing fine solid suspended matter.

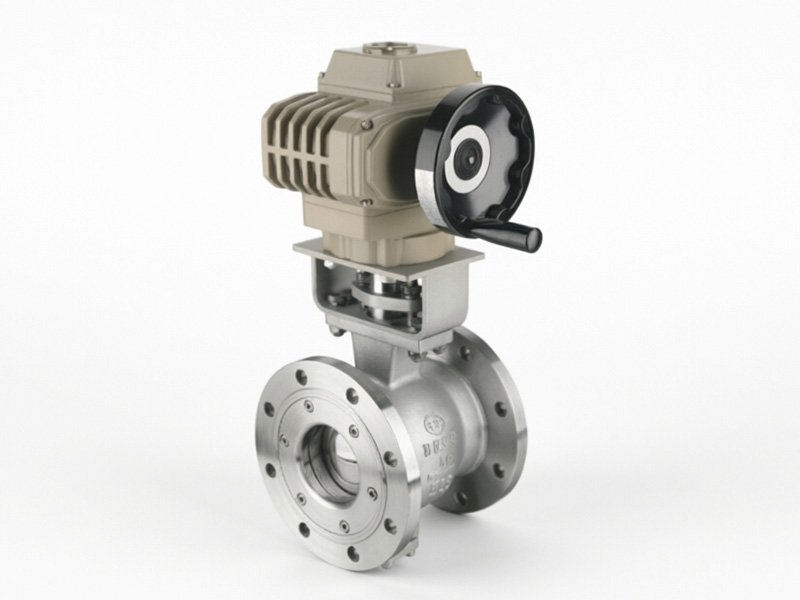

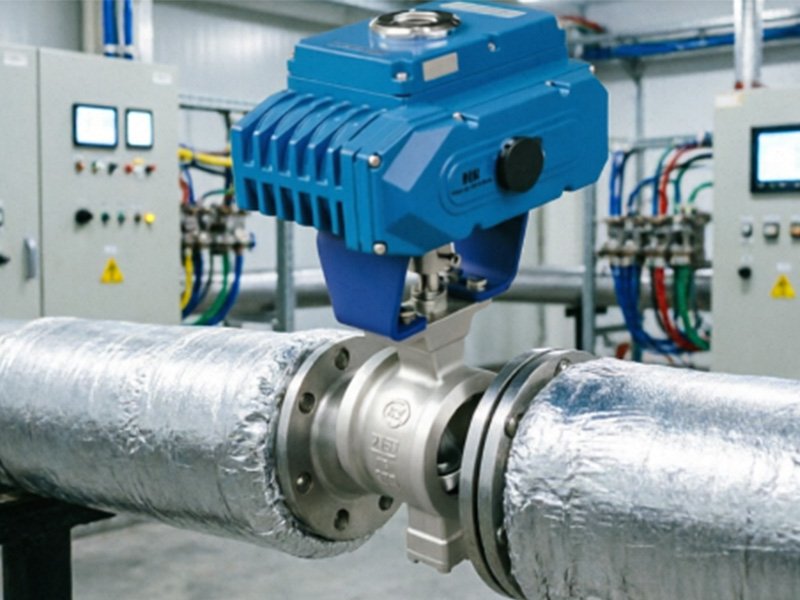

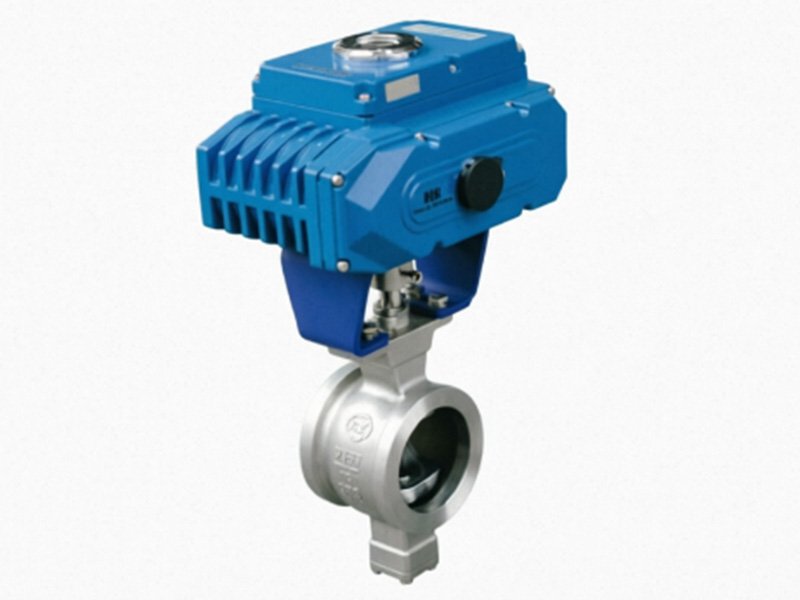

It is widely used in the automatic control systems of papermaking, sugar, petroleum, chemical, metallurgy, and other industries.
The integral valve body does not have any pipe fittings, so it is not affected by the stress of pipes and bolts, and since the valve body does not have pipe fittings, the pressure-resistant shell will not be affected by “sudden” pressure.
